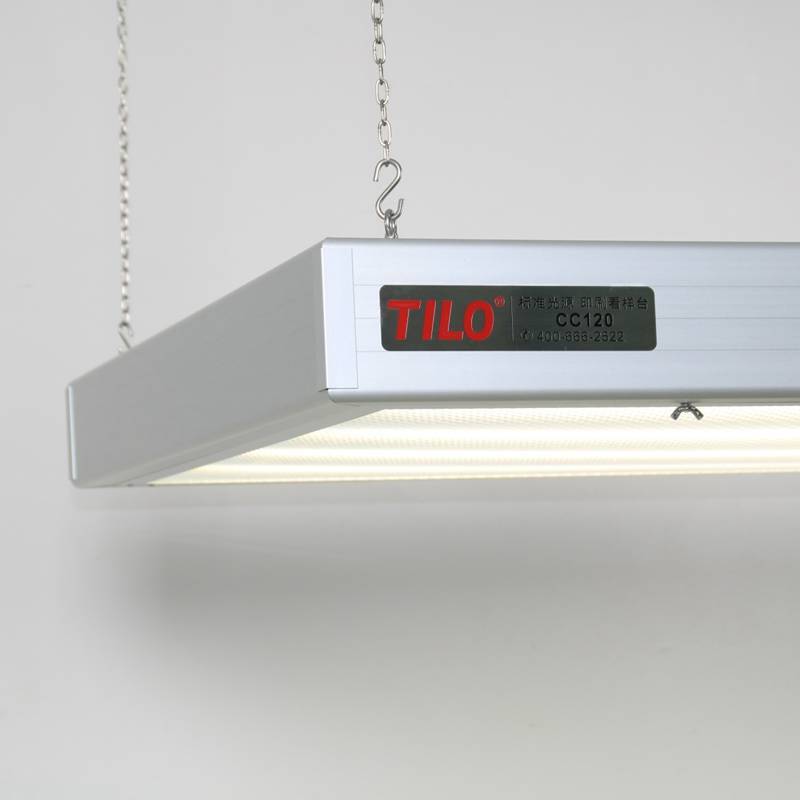

Color Matching Light Box CC120-W


CC120 color viewer matching light box color proofing light control professional

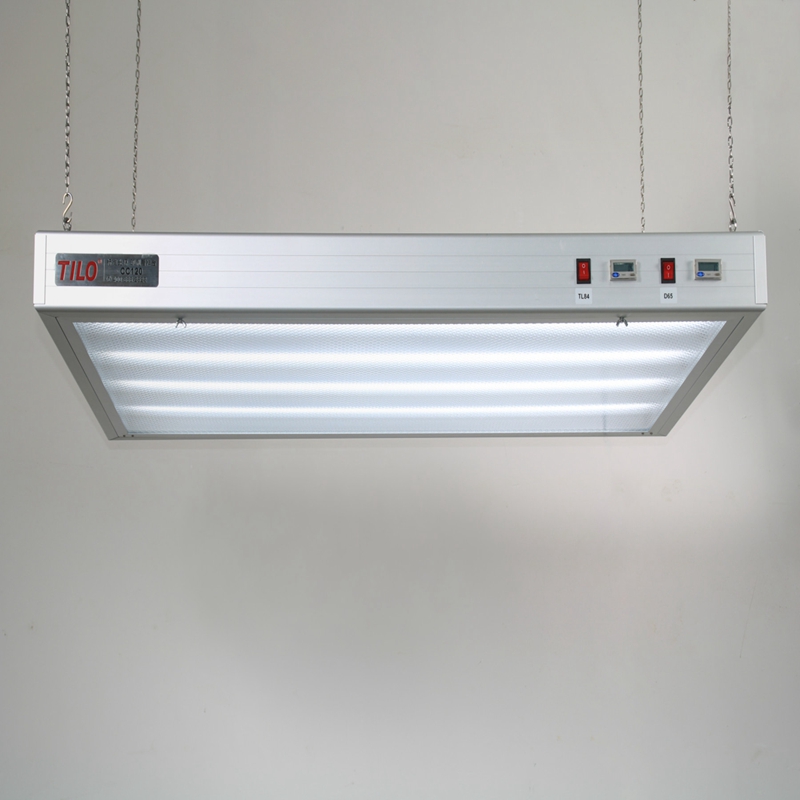

CC120 Color Viewer Color Light hung-up (D65, D65&D50, D65&D50&U30)

Common Light source: D65,D50,U30 Replacement light source: TL84, UV, CWF ,TL83

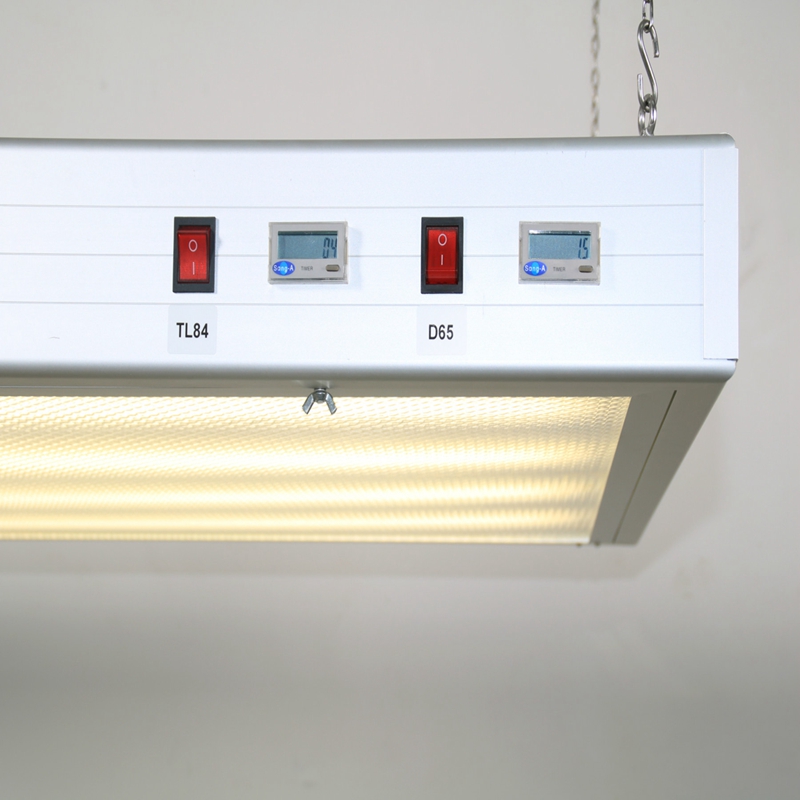

ColorController Color Viewer is widely applies to printing industry, furnishings and color matching of the printing ink industry etc.. It is a necessity for those industry to control the colors and qualities of products. This Color Viewer supplies D65, D50,U30 light sources. This machine was controlled by microcomputer, which allows the rapid conversion between each light source. The Color Viewer also had the function of display the running time of each light source.


Light source

In different condition, the object may present different spectrum with same color. Our vision result of the colors will be differently, thereby it will affect us to judge the color accurately by our naked eyes. While according to our customer’s demand, the Color Viewer ,which is the international standard, can provide the right light source you need when you check the colors, such as D65,D50,TL84,UV,U30,CWF etc.. The life-span of lamp depends on the accumulated running time and the turn-on times. When the lamp becomes aging, light instability or the two sides turn black, please replace the lamp timely, otherwise, the checking result will be affected.

Technique Parameter

Light source: imported fluorescent lamp

36W D65 *4

36W D50 *4

36W U30 *4


Remark: D65, D65&D50, or D65&D50&U30 customers can choose, and the price is different.


Light Source   D65 D65 & D50 D65 & D50 & U30
Tubes D65 6500K 36W D65 6500K 36W D50 5000K 36W D65 6500K 36W D50 5000K 36W U30 3000K 36W
Power AC220V 50HZ AC220V 50HZ AC220V 50HZ
Wortable Size (cm) 133*97   133*97 133*97
Size (cm) 133* 102*216 133* 102*216 133*102*216
