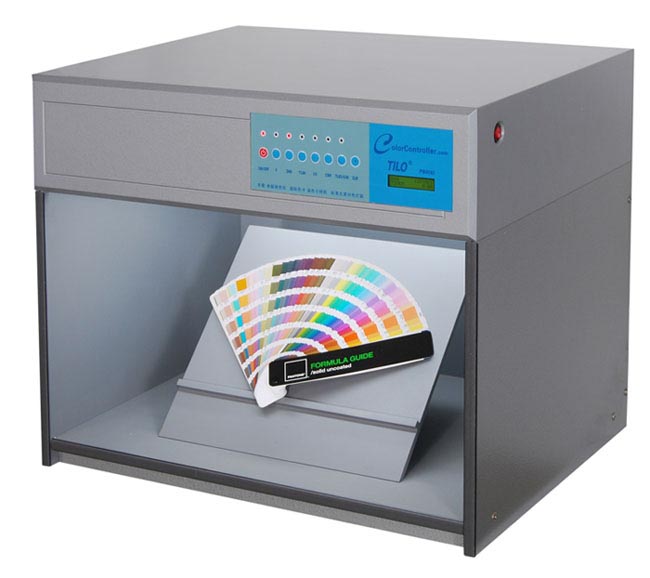

COLOR-60 (2 in 1) eight light source color light cabinet



According to users' needs, various standard light sources recognized by the International Commission on Illumination (CIE) can be provided, meeting all major visual evaluation standards, including AS, ASTM, BSI, DIN, and ISO international standards, such as ISO 3664, ISO 3668, ISO 13076, ISO 23603, AATCC EP9, ASTM D1729, DIN 6173, CIE S025/E, BS 950 Pt.2, etc.

Made in China
Configuration: D65, TL84, CWF, F, UV, U30, A , TL83 eight light sources
Weight: 38Kg
Dimensions(WxDxH): 710x530x570 mm
Optional accessories: 45 degree standard stand


Features:

1. Display the usage time, name, and number of switches for each source;
2. Switch light source automatically  with the funtion of metamerism;
3. No warm-up time or flickering which insures quick and reliable color assessment;
4. Low energy consumption, no heat dissipation, high luminous efficiency;
5. Equip with common light sources of British and American standards;
6. Include American Standard A Light Source and 30U Light Source;
8. Light source's can be changed, more easy to replace the light source;
9. Produce with high standard international brand HTAYOLE.



Specifications:
Order No. Name Model D65 TL84 F UV CWF TL83 U30 A Voltage
10108  Standard light source cabinet Color-60 eight light source(220V) 2 pcs 2 pcs 4 pcs 1 pcs 2 pcs 2 pcs 2 pcs 2 pcs 220V/50Hz
10108 Standard light source cabinet Color-60 eight light source(115V) 2 pcs 2 pcs 4 pcs 1 pcs 2 pcs 2 pcs 2 pcs 2 pcs 110V/60Hz




Light Sources:
Light Source Color viewing cabinet application Color temperature(k) Power(W) Brand&Specification
D65 International standard Artificial Daylight 6500 20 Gretagmacbeth F20T12/65
TL84 Applied to stores in Europe, Japan and China 4000 18 PHILIPS
TLD 18W/840
CWF (Cool White Fluorescent) American Standard 4150 20 SYLVANIA
F20T12/CW
TL83 Warm White Fluorescent European Standard 3000 18 PHILIPS
TLD 18W/830
F "Sun-setting Light Yellow" incandescent light source(imitation of sunset) 2700 40 3nh
40W
A American shopwindow spotlight 2856 60 3nh
60W
UV Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments Wavelength:365nm 20 PHILIPS
TLD 18W/BLB

U30 (Warm White Fluorescent) American Standard 3000 18
