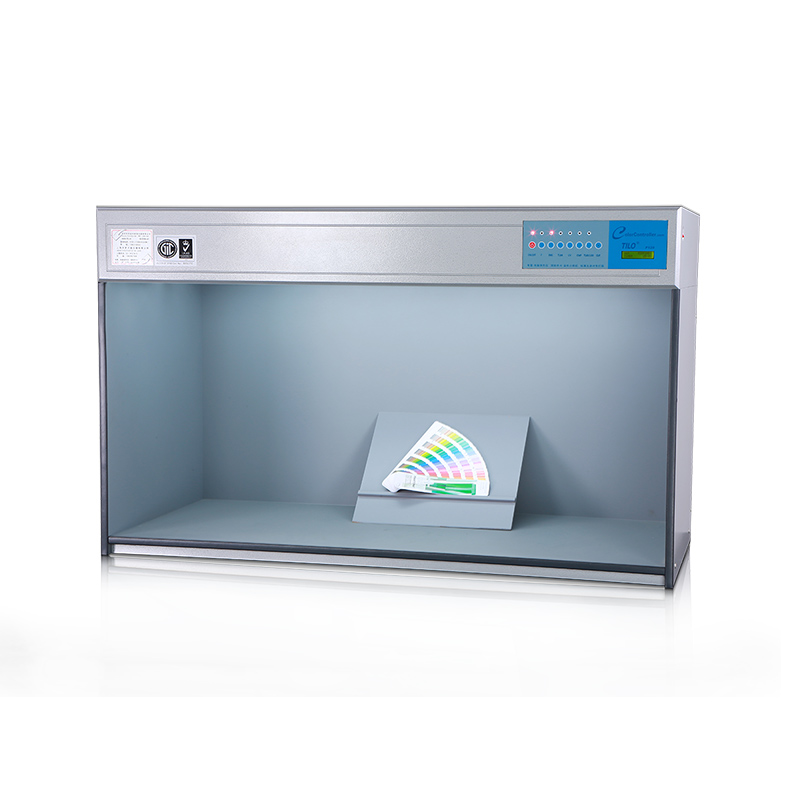

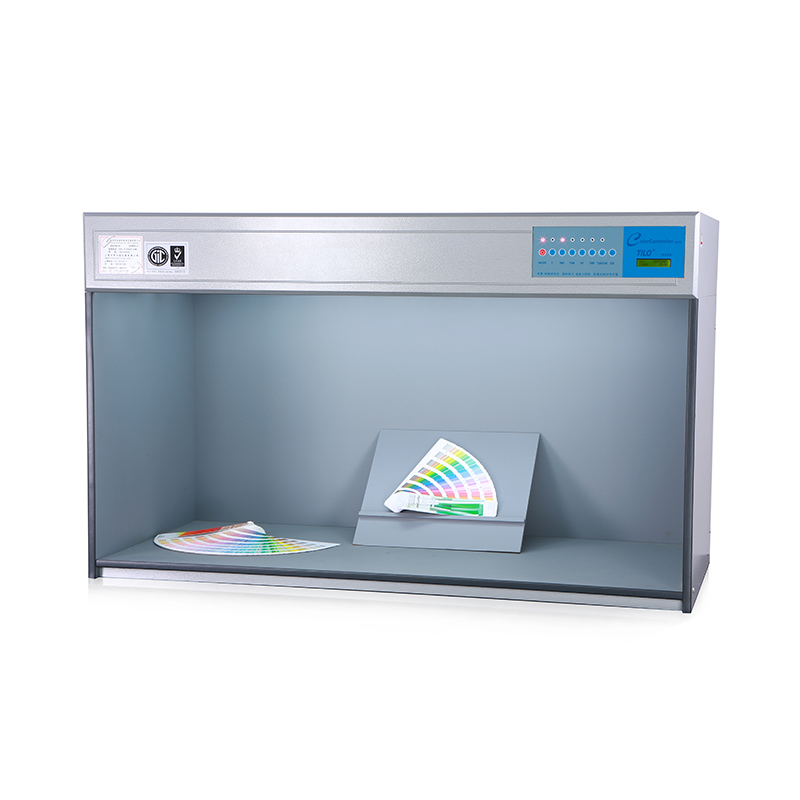

P120 Oversize Color Light cabinet


Brand: TILO
Made in China
Configuration: D65, TL84, F, UV,CWF,TL83 six light sources
Weight: 60Kg
Dimensions(WxDxH): Outline: 1310x600x800mm  Interior: 1280x590x590mm


TILO P120 color light cabinet is equipped with 6 light sources. The consistency of the light sources in all Tilo Colour Assessment Cabinets gives excellent viewing conditions for reliable colour critical decisions under consistent lighting.

TILO P120 color light cabinet can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.




Features:

1. Display the usage time, name and number of switches for each light source.
2. Automatic switching of light source with metamerism.
3. No warm-up, no flashing, fast and reliable evaluation of colors.
4. Low energy consumption, no heat dissipation, high luminous efficiency.
5. Configure a more complete standard light source for English and American standards.
6. The name of the light source can be changed, and it is more convenient to increase the light source.
7. Oversize volume and internal frame for easy observation of large items.



Specifications:

Order No. Name Model D65 TL84 F UV CWF TL83 Voltage
10118  Standard light source cabinet P120 six light source(220V) 2pcs 2pcs 6pcs 1pcs 2pcs 2pcs 220V/50Hz
10818 Standard light source cabinet P60(6) six light source(115V) 2pcs 2pcs 6pcs 1pcs 2pcs 2pcs 115V/60Hz

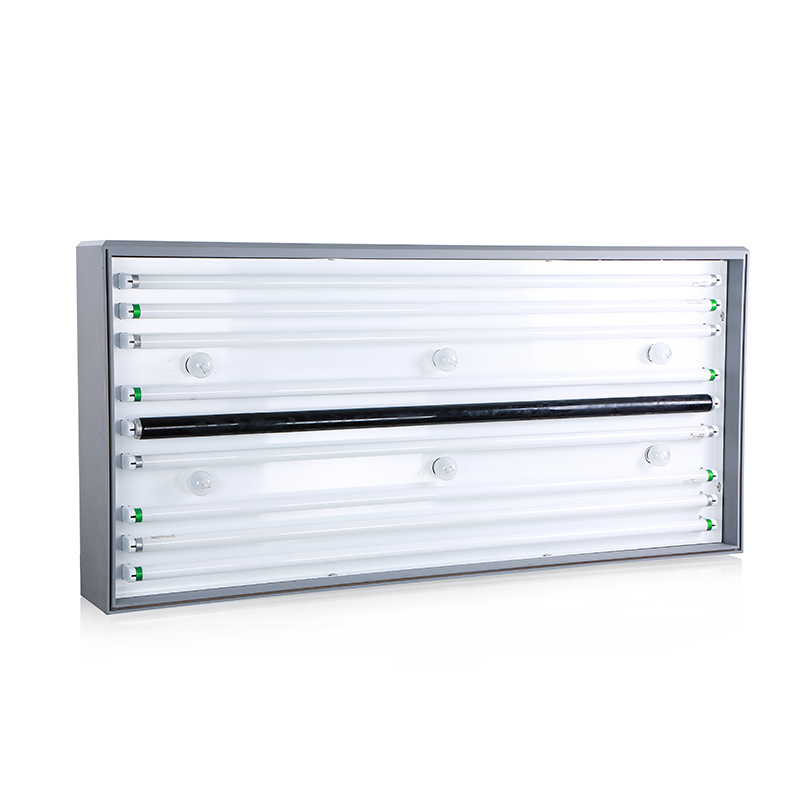

Light Sources:

Light Source Color viewing cabinet application Color temperature(k) Power(W)
D65 International standard Artificial Daylight 6500 18
TL84 Applied to stores in Europe, Japan and China 4000 18
CWF (Cool White Fluorescent) American Standard 4150 18
F/A "Sun-setting Light Yellow" incandescent light source (imitation of sunset) 2700 40
UV Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments Wave length:365nm 20
TL83 Warm White Fluorescent American Standard 3000 18
